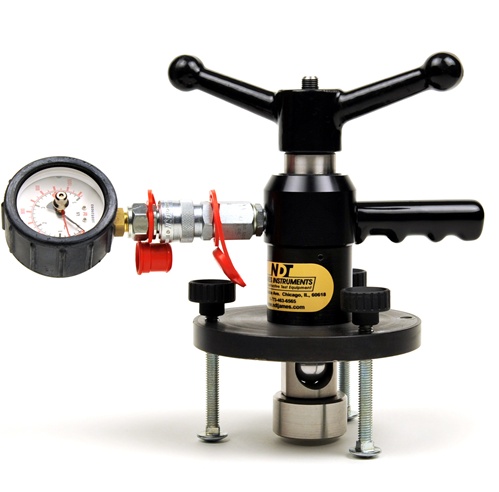

美國NDT JAMES P-C-7300 Bond Test MK III粘結強度測試儀

美國NDT JAMES P-C-7300 Bond Test MK III粘結強度測試儀，

美國NDT JAMES P-C-7300 Bond Test MK III粘結強度測試儀

	名稱：	美國NDT JAMES P-C-7300 Bond Test MK III粘結強度測試儀
	型號：	P-C-7300 Bond Test MK III
	廠家：	美國NDT JAMES
	用途：	可由直接拉脫的方法量度混凝土、瀝青、磁磚、混凝土收復或其他表面物料的粘力或拉力。

詳細介紹：

美國NDT JAMES P-C-7300 Bond Test MK III粘結強度測試儀可由直接拉脫的方法量度混凝土、瀝青、磁磚、混凝土收復或其他表面物料的粘力或拉力。

The James Bond Tester? MK III or pull off adhesion test measures the bond strength or tensile strength of concrete, asphalt, tile, concrete repair, or other overlay material by the direct tension or pull off method. By pulling a 25mm steel disk attached to the material under the unit can,

Measure the near surface strength of a substrate in order to determine the substrates quality before applying an overlay
Determine the bond strength of a repair or overlay material after it is applied to the substrate
Determine the tensile strength of a repair, overlay or adhesive after the material is applied to the surface

The James Bond Tester? MK III has been successfully used to verify the quality of existing materials, determine the adhesion strength of shotcrete, tile, epoxies, paint and other repair materials or coatings.

Purchasing Notes

Each System comes with 10, 50mm 2 inch, ASTM Standard 1583 - 04 stainless steel disks
Customers who purchase this may also need the T-M-170 Moisture Master or T-HT-1000 Humitest for substrate moisture testing

Features and Benefits

· Accurate bond strength of repair mortars, epoxy resins, laminates, overlays, and other coatings.

· Calibrated gauge with maximum load indicator and mechanical damping.

· Ball Joint Design for rapid testing as well as assuring direct tensile loading

· Adjustable alignment plate with built in leveling facility for both vertical and horizontal pulls.

· Compact design.

· Easy to use.

· Standards

o ISO 4624 Paints and varnishes -- Pull-off test for adhesion

o EN 1015-12 Methods of test for mortar for masonry. Determination of adhesive strength of hardened rendering and plastering mortars on substrate

o EN 1348 Determination of Tensile Adhesion Strength for Cementitious Adhesives

o BS 1881 Part 207 Testing concrete. Recommendations for the assessment of concrete strength by near-to-surface tests

o ASTM C 1583 Standard Test Method for Tensile Strength of Concrete Surfaces and the Bond Strength or Tensile Strength of Concrete Repair and Overlay Materials by Direct Tension (Pull-off Method)

o ASTM D 4541 Standard Test Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers

o ACI 503-30 Guide for the Application of Epoxy and Latex Adhesives for Bonding Freshly Mixed and Hardened Concretes

o DIN 1048 Part 2 Testing concrete; testing of hardened concrete (specimens taken in situ)

Specifications:

Gauge Specifications
Range	Increments	Maximum Load Indicator	Mechanical Dampened Movement	Diameter
0 - 5 KN / 0 - 1100 lbf	0.2 KN / 50 lbf	Yes	Yes	70 mm / 2.5"
0 - 20 KN / 0 - 4450 lbf	1.0 KN / 200 lbf	Yes	Yes	70 mm / 2.5"

Alignment Plate
Diameter	Horizontal and Vertical Level	Easy Thumb Screw Adjustment Knobs
150 mm / 6"	Yes	Yes

Bond Test Puller Assembly
Diameter	Height	Maximum Load
60 mm / 2.5"	210mm / 8.125"	30 KN / 6675 lbf

Bond Test Assembly (Alignment Plate Attached to Bond Test Puller Assembly)
Height	Width	Weight
240 mm / 9.375"	3010 mm / 12.5"	5 Kg / 11 lbs.

James Bond Tester? MK III in Case
Height	Width	Depth	Weight
410mm / 16"	508mm / 20"	205mm / 8"	14 Kg / 31 lbs

以上是美國NDT JAMES P-C-7300 Bond Test MK III粘結強度測試儀
